By following a detailed, phase-by-phase installation plan, organisations can ensure that Architectural Glass and Rooflight systems are installed to the highest standards of quality, safety, and performance. Each stage from the meticulous pre-installation assessments and planning to careful, precision-driven installation and robust post-installation quality checks plays a pivotal role in delivering a final product that meets both industry standards and client expectations.

We cover the following related services:

Pre-Installation Phase

1. Project Assessment and Site Survey
• Conduct a comprehensive assessment of the project requirements, including architectural, installation and detail drawings, specifications, and performance requirements for glass panels and rooflights.
• Perform a site visit to review accessibility to workfaces and logistic requirements for the unloading, decanting and distribution of materials.
• Identify any potential obstructions, access issues, or environmental factors (e.g., roof slope, wind exposure) that could affect delivery or installation.
• Conduct a detailed on-site survey to verify SO dimensions and review of the installation surfaces, ensuring support structures and anchorage points are suitable for glass and rooflight installations.
2. Design Assessment
• Review the installation drawings and collaborate with designers and engineers to validate the proposed design, ensuring the hidden or impossible fixings are eliminated and establishing the most efficient installation sequence.
• Ensure that the support frames, fixings, ancillary cladding elements and any substructure elements are designed to accommodate harmoniously the interface with the structural supports and other planned or existing adjacent cladding or roof waterproofing systems.
3. Create and review the Safe Systems of Works
• Prepare comprehensive risk assessments (RAMS) covering glass handling, lifting operations, and work on roofs or elevated platforms.
• Define emergency protocols and ensure all personnel are appropriately briefed and trained in working with fragile materials.

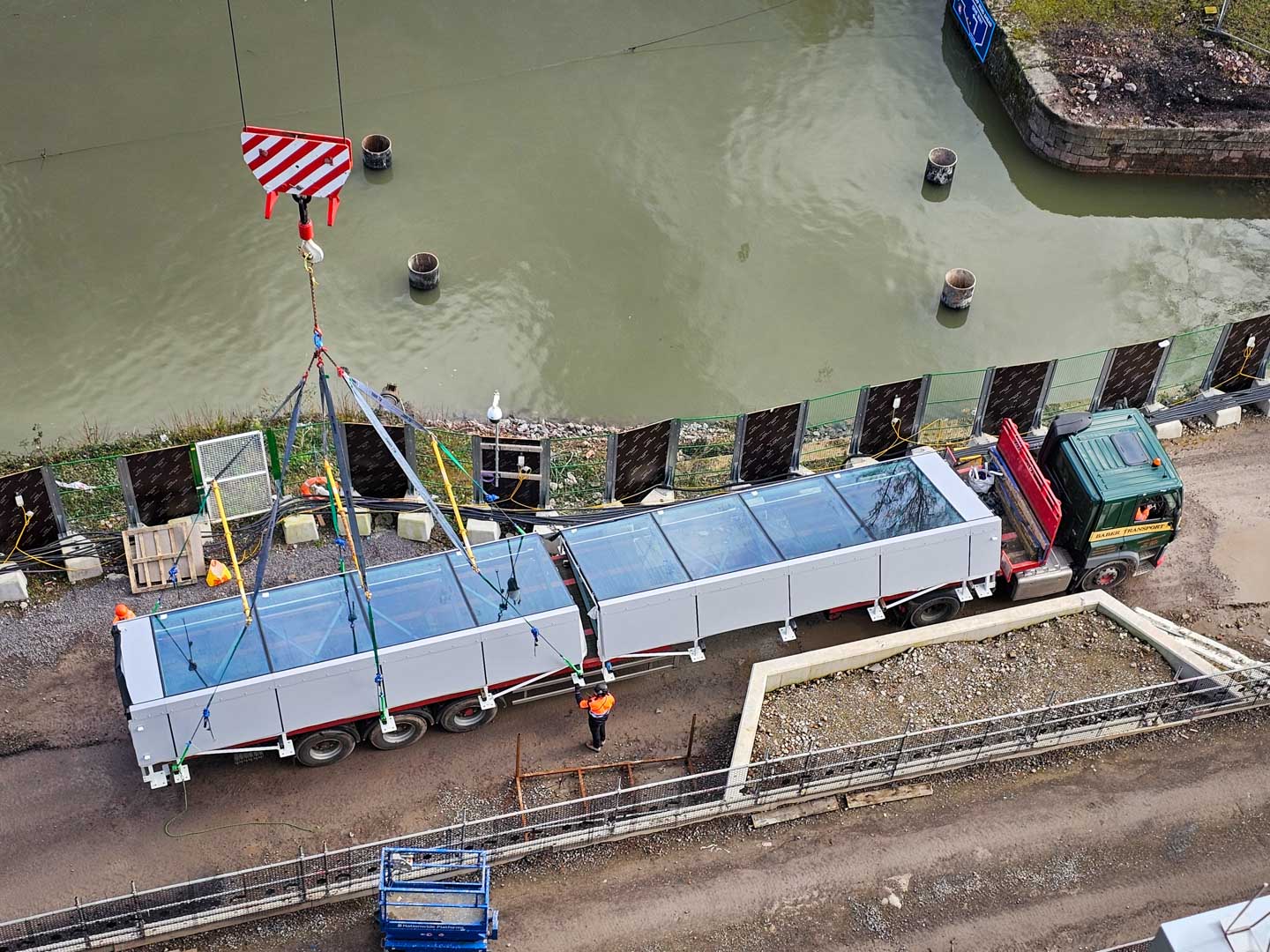

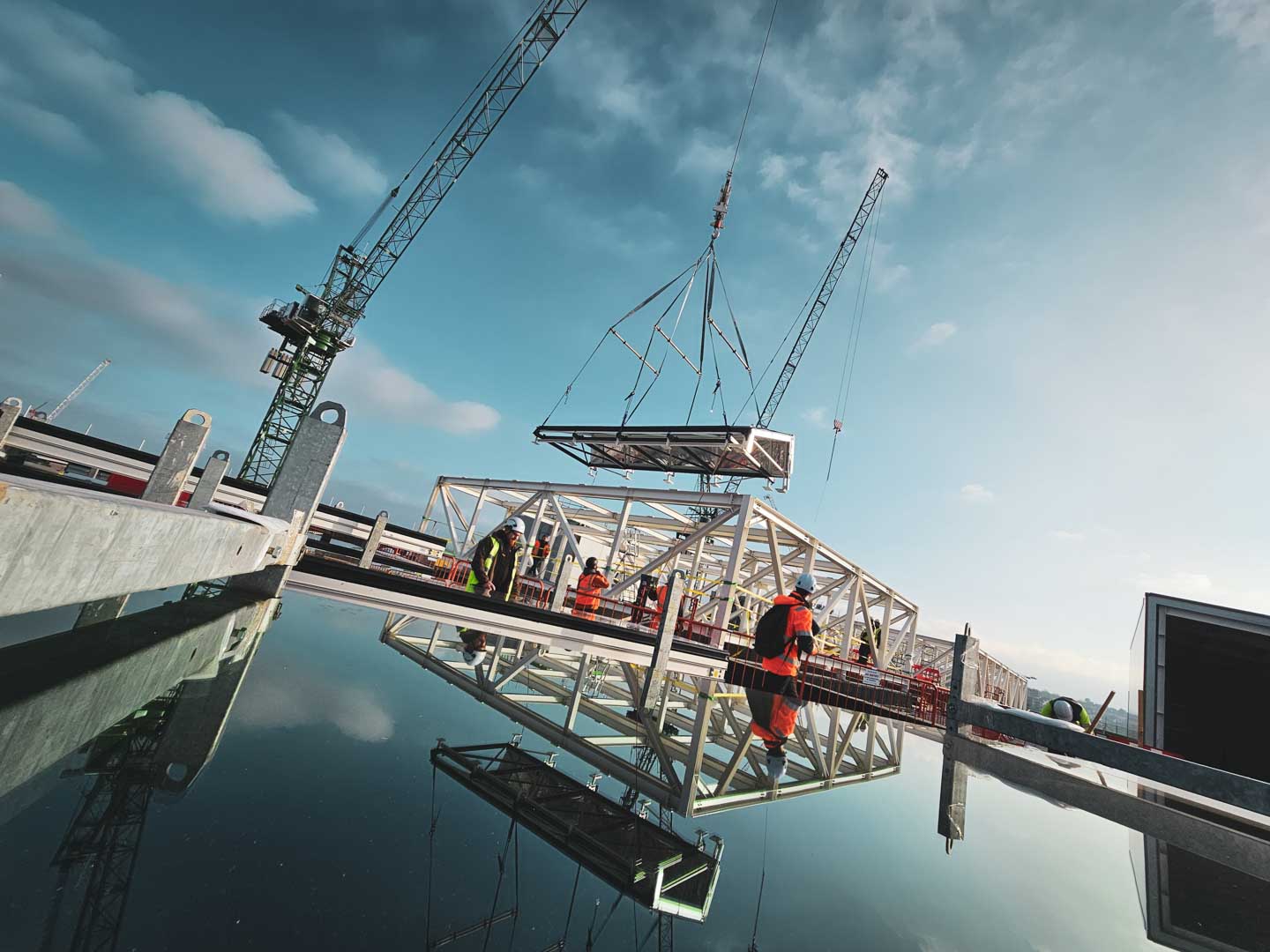

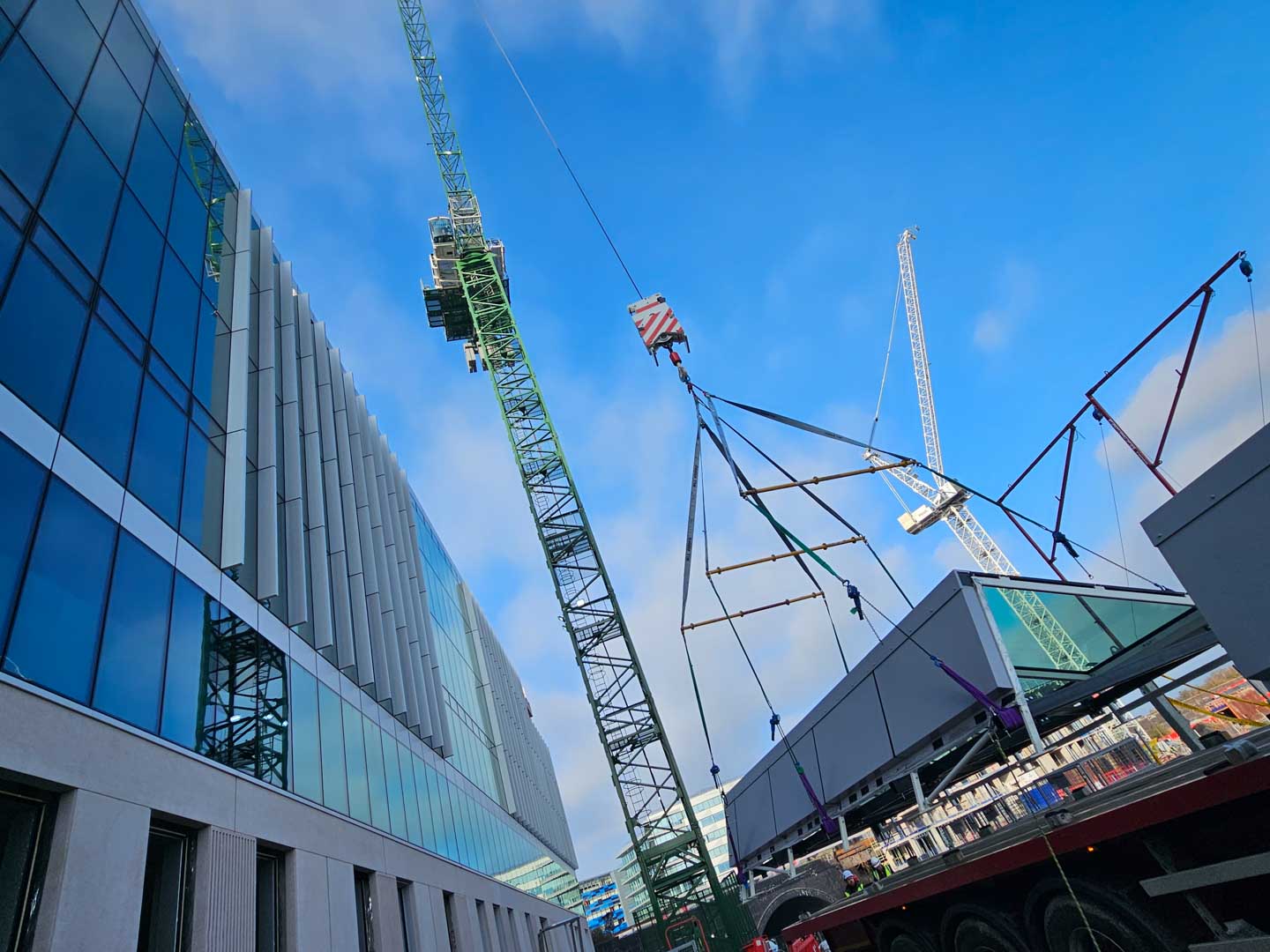

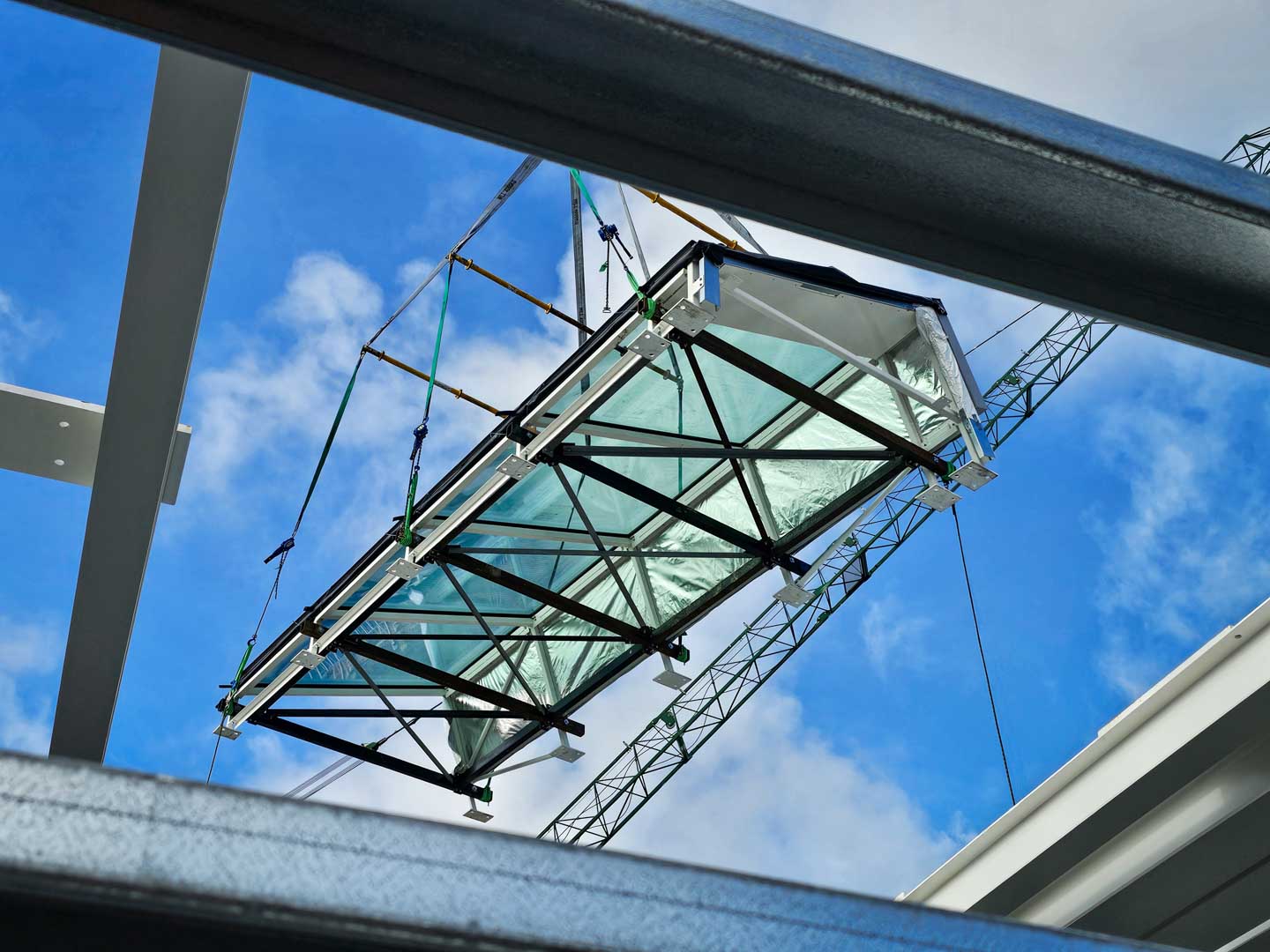

• Develop specialized lifting plans, considering the weight and fragility of glass panels and rooflight units, as well as specific machinery and accessories (e.g., suction lifters, vacuum technology).
4. Delivery Schedule Coordination

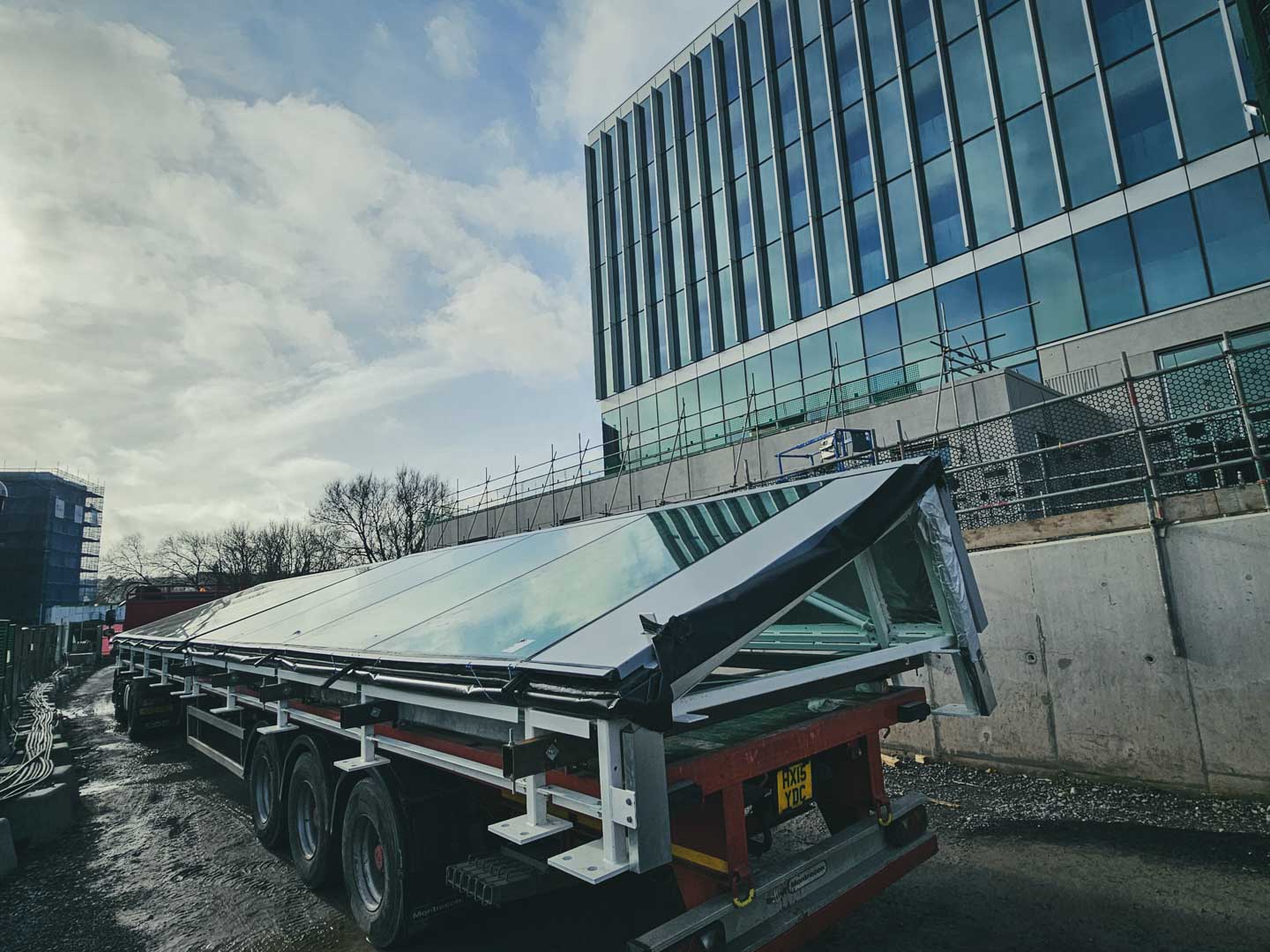

• Synchronize the delivery of architectural glass and rooflight components with installation timelines, factoring in the site storage constraints, weather conditions, and handling requirements.
• Inspect all received materials for defects or damage before moving them to the installation area.

Installation Phase

1. Site Preparation
• Resource the storage needs for tools and sensible materials, lifting equipment and accessories, access requirements, PPE, consumables, safety barriers and man-safe systems, and any other necessary equipment.
• Set up secure, weather-protected storage close to the installation site to minimize handling and exposure.
• Ensure all safety protocols are in place, including temporary barriers, safety nets, and guardrails around roof work zones.
• Ensure all installation personnel are equipped with the required personal protective equipment (PPE), have the appropriate training and have been briefed on all required emergency and rescue procedures.
2. Layout and Marking
• Using laser levels and other precision tools, accurately mark the positions of the glass or rooflight anchor points on the support structure.
• Confirm that the layout aligns with the approved design drawings, accounting for expansion gaps and aesthetic considerations.
• Where necessary, pre-install sub-structure elements (e.g., brackets, anchors, posts or support frames) to ensure secure fixation of the glass and rooflight systems.

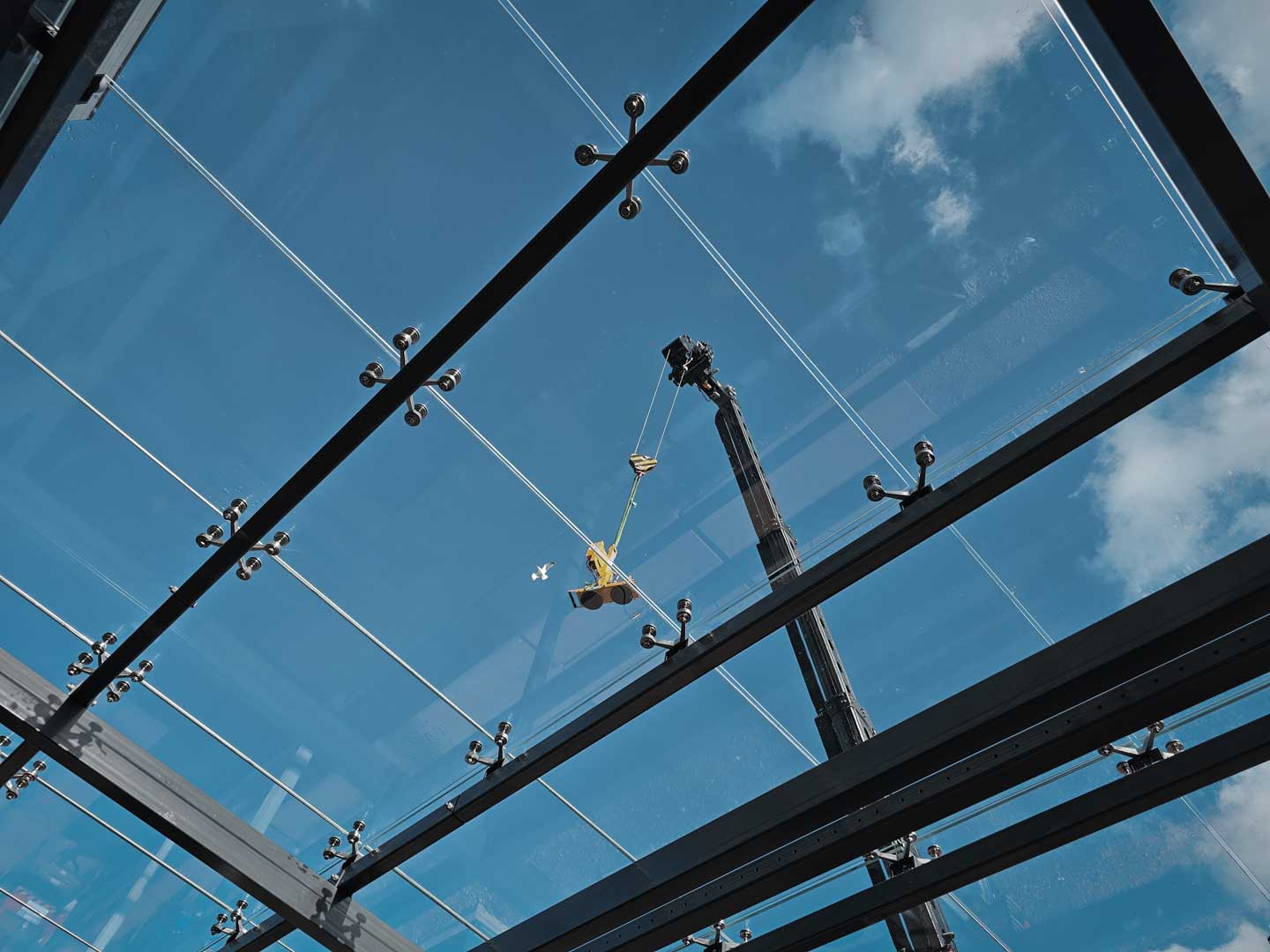

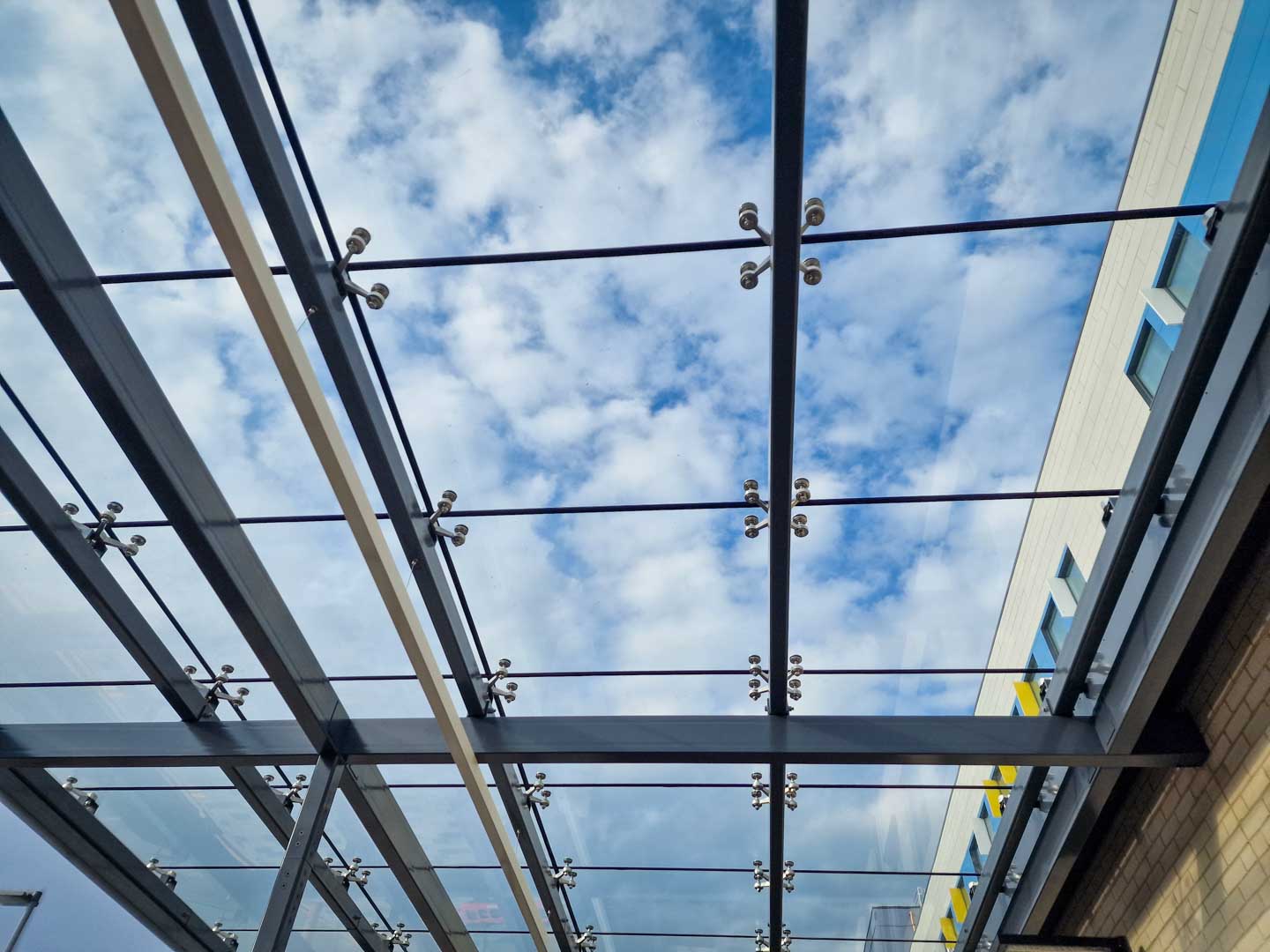

3. Installation of Glass Panels and Rooflight Systems

 Glass Panel Installation:

• Position and secure the glass panels onto the prepared support system.

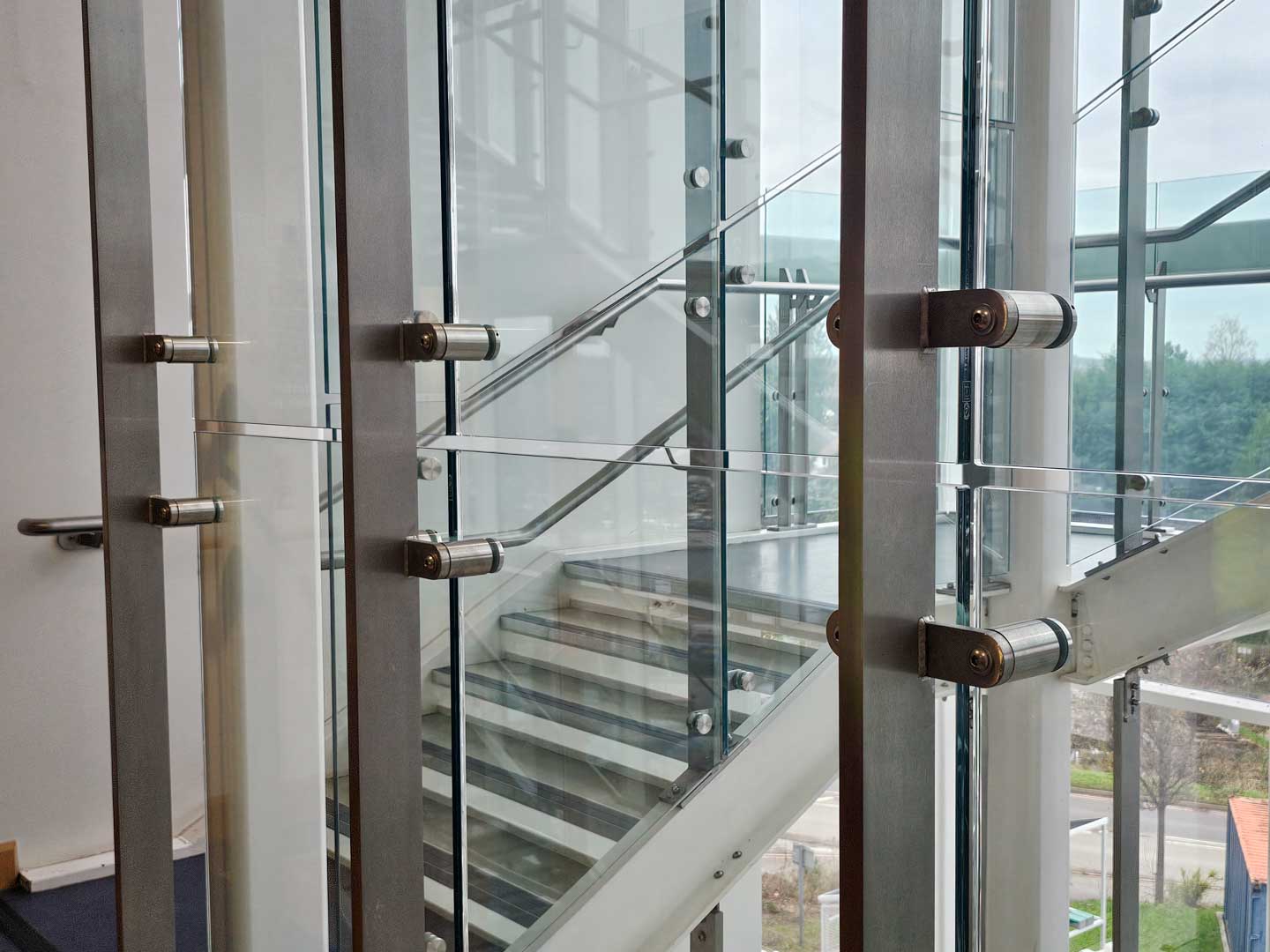

• Use specialised glazing techniques (either dry- or wet-glazing) appropriate to the glass type, applying pressure ring nuts, gaskets, or setting blocks to ensure even load distribution.
• Check for correct alignment and make any necessary adjustments.

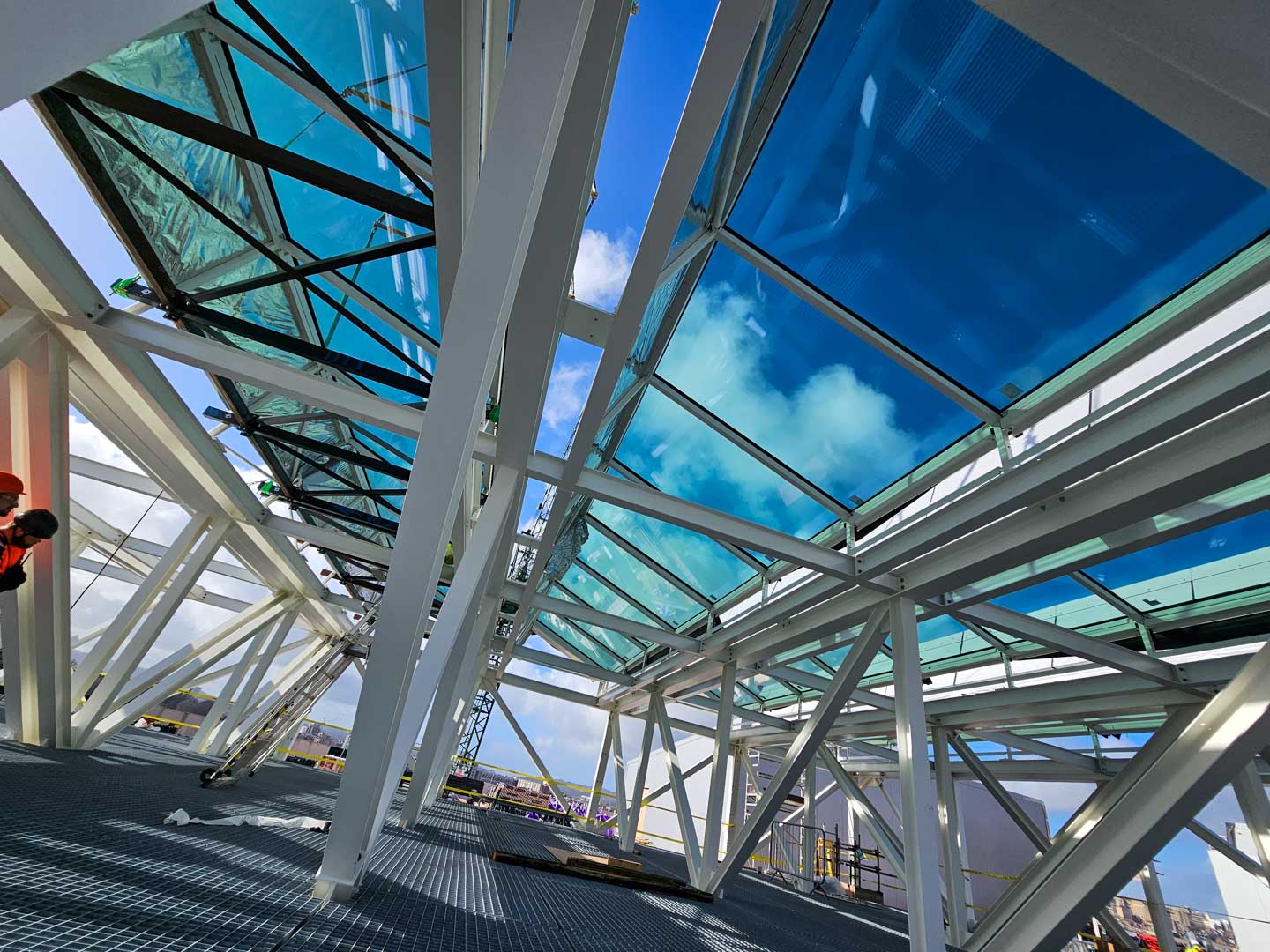

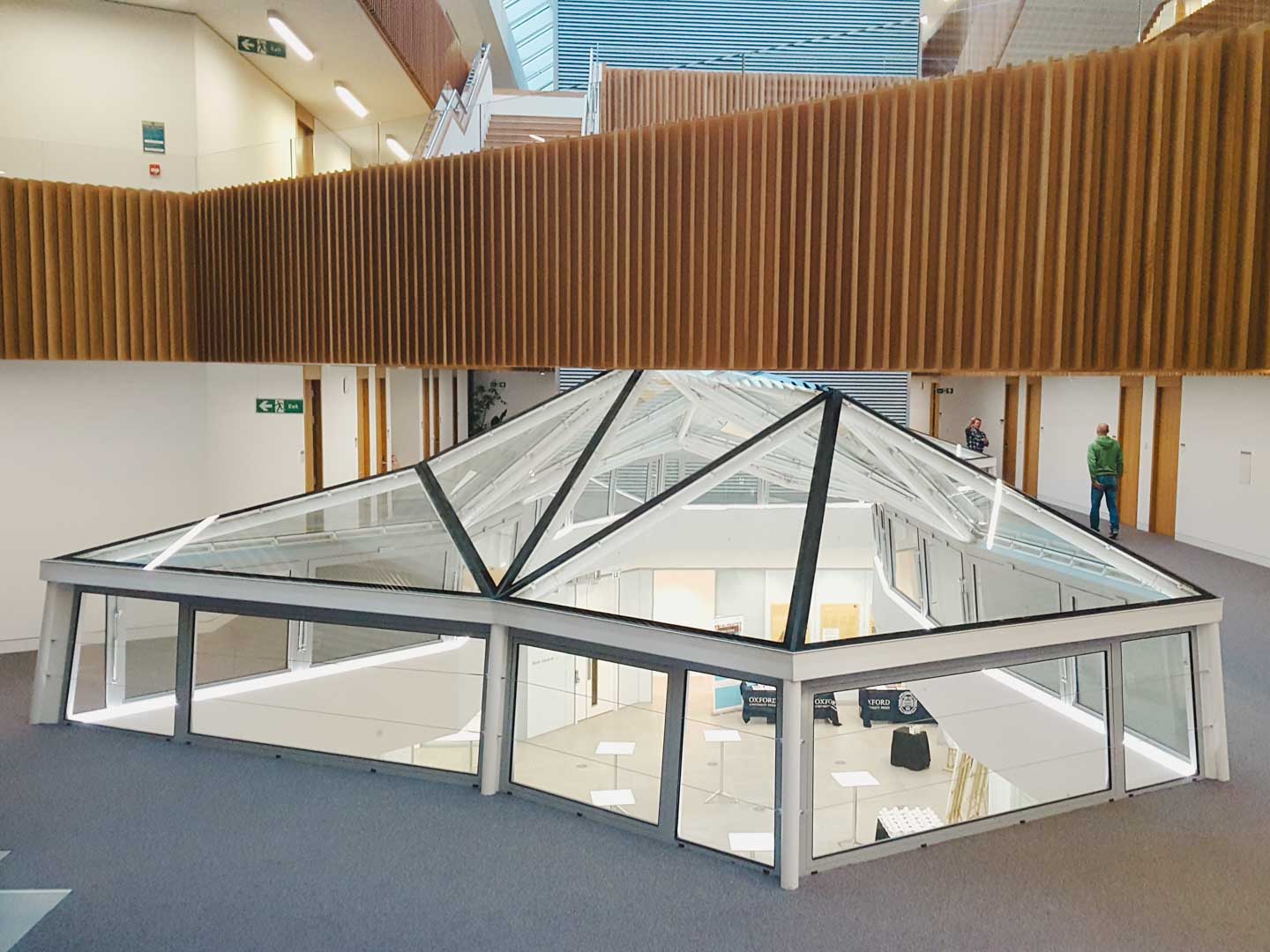

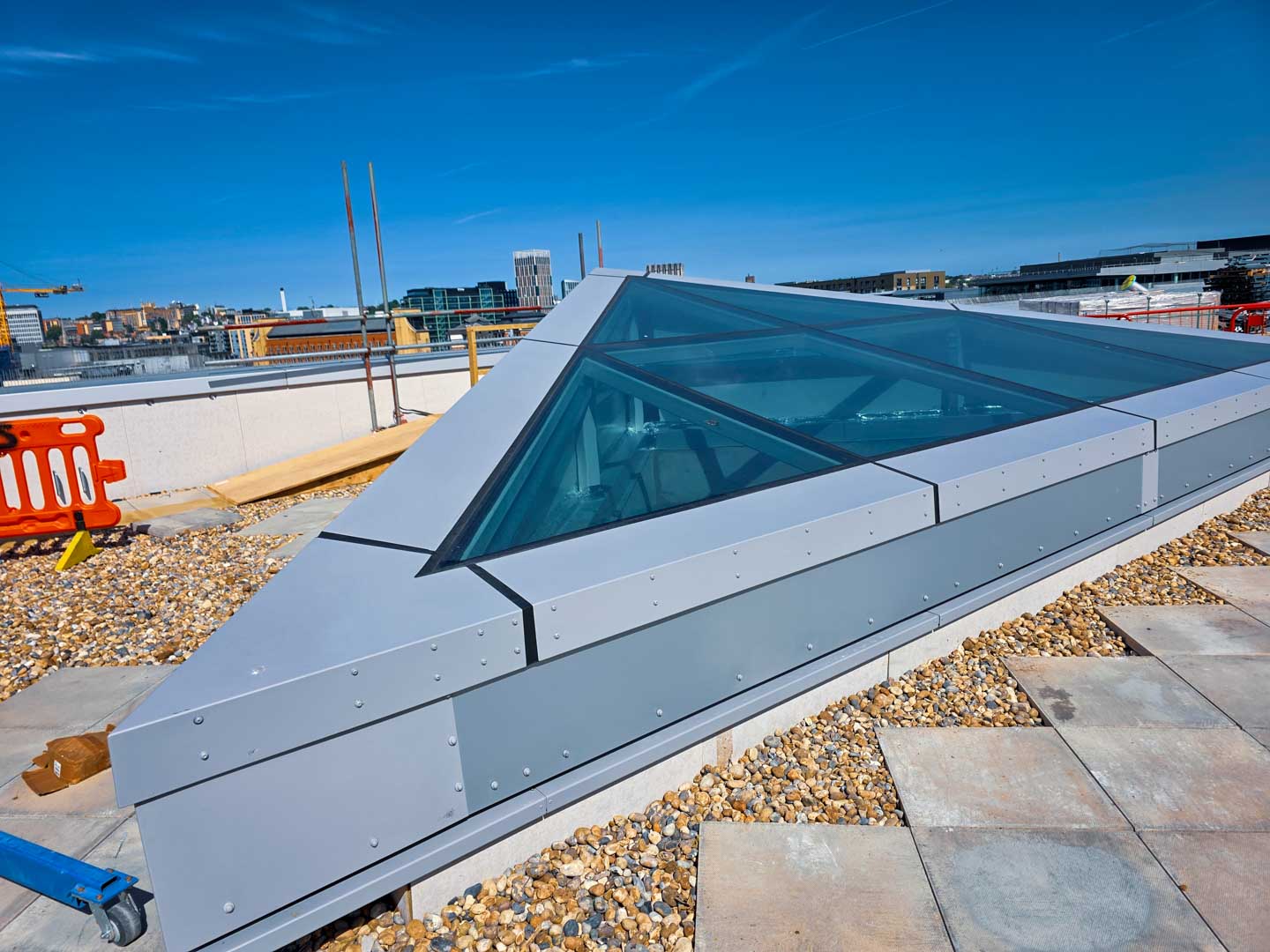

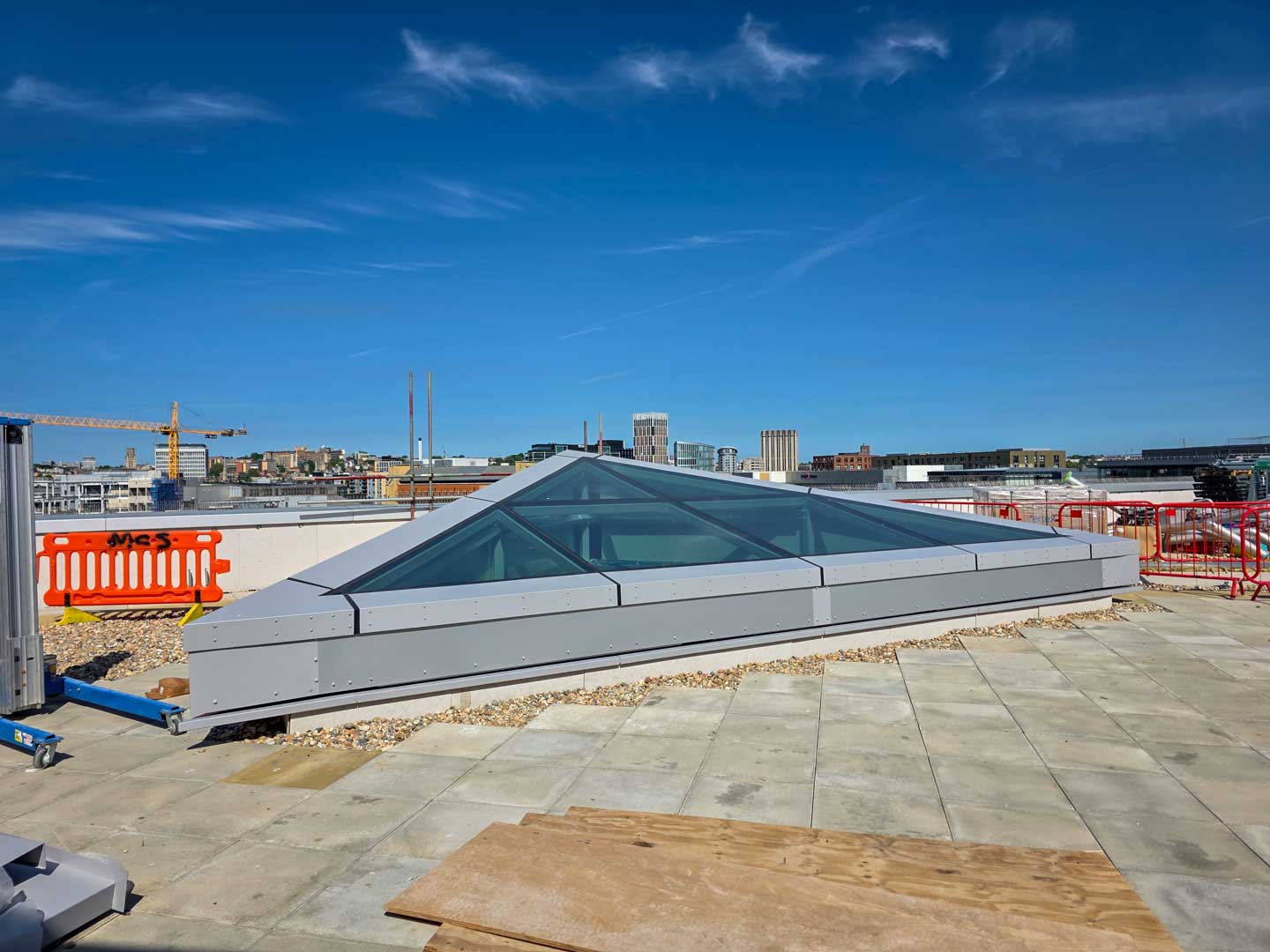

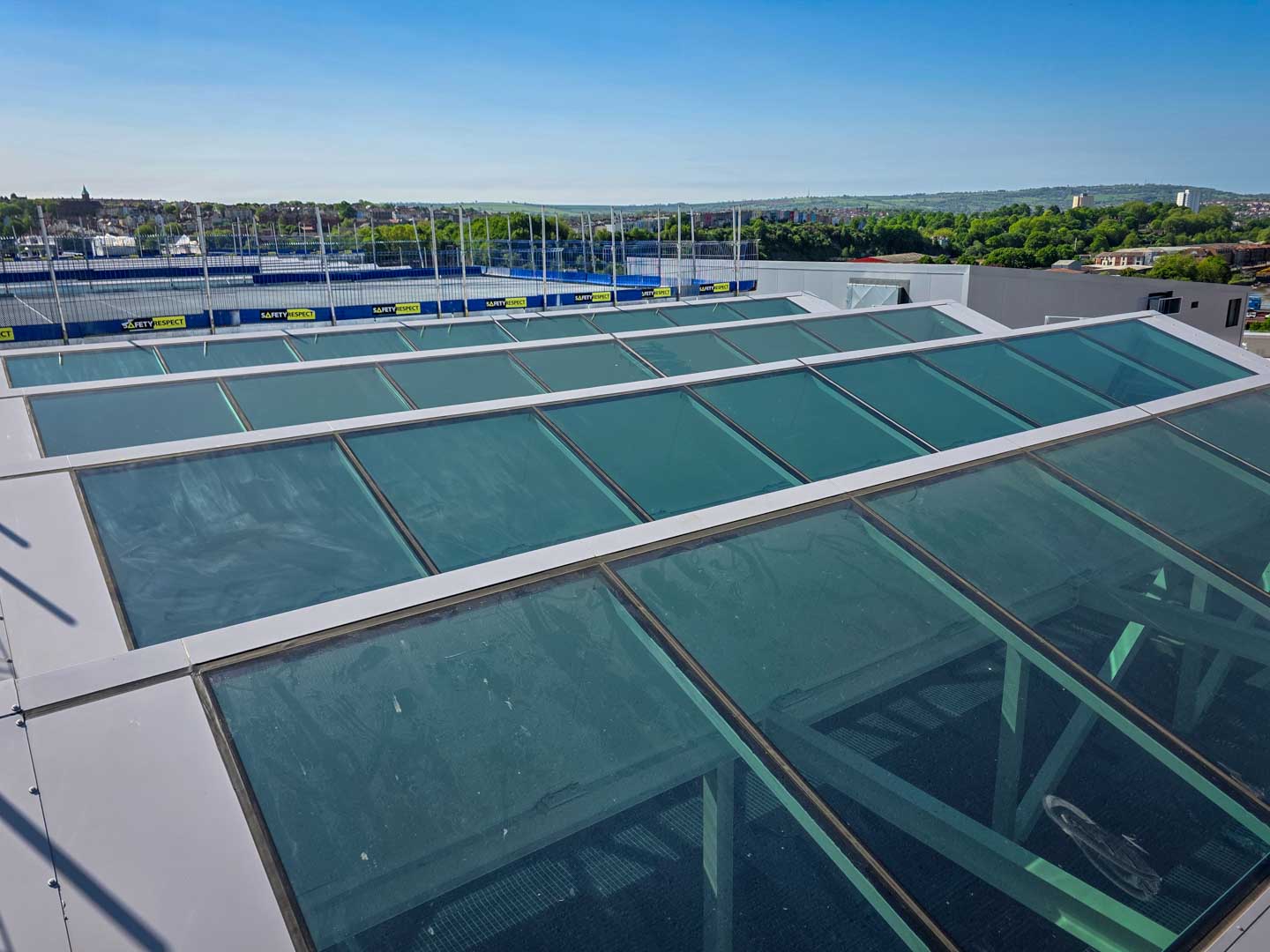

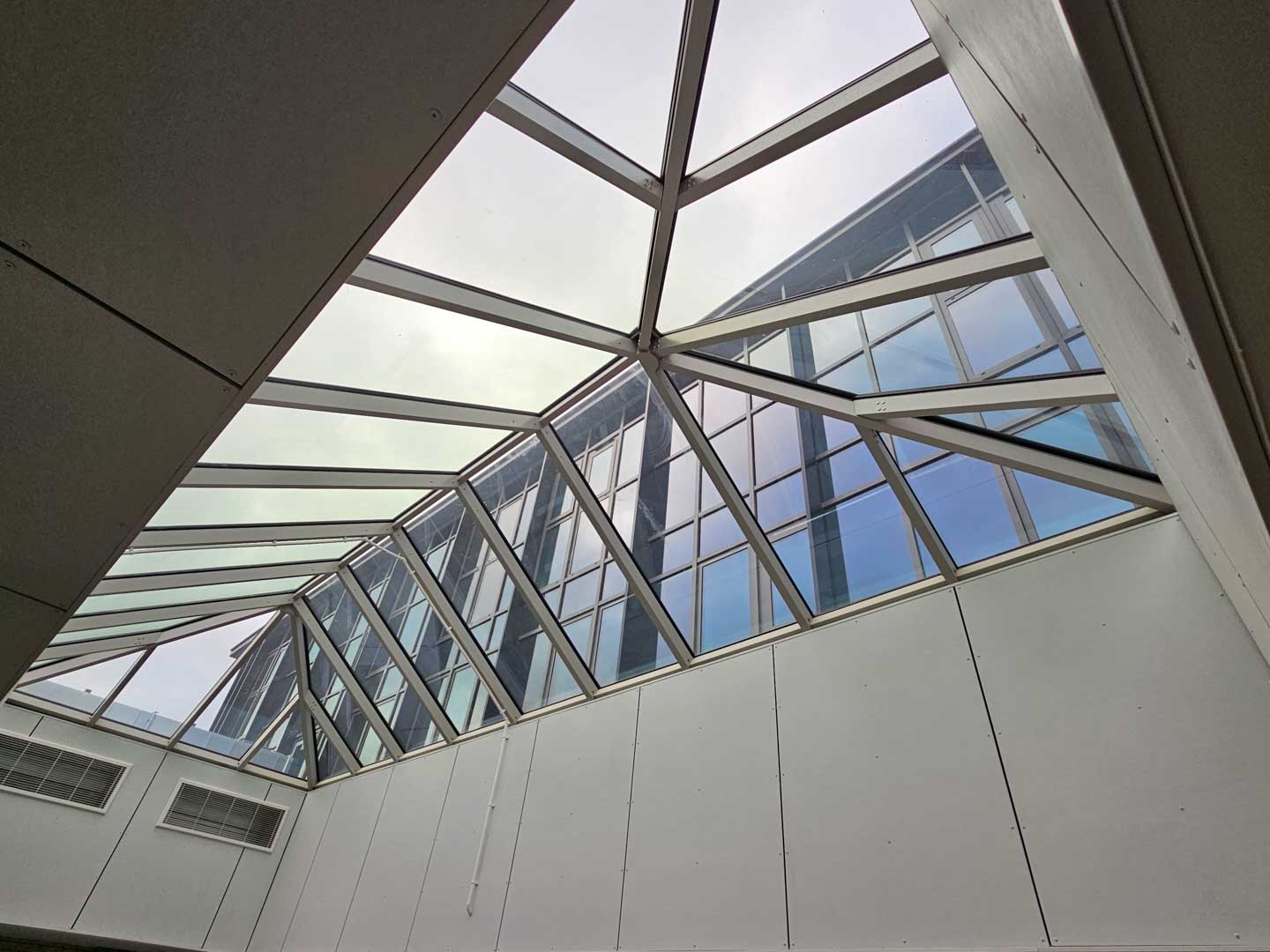

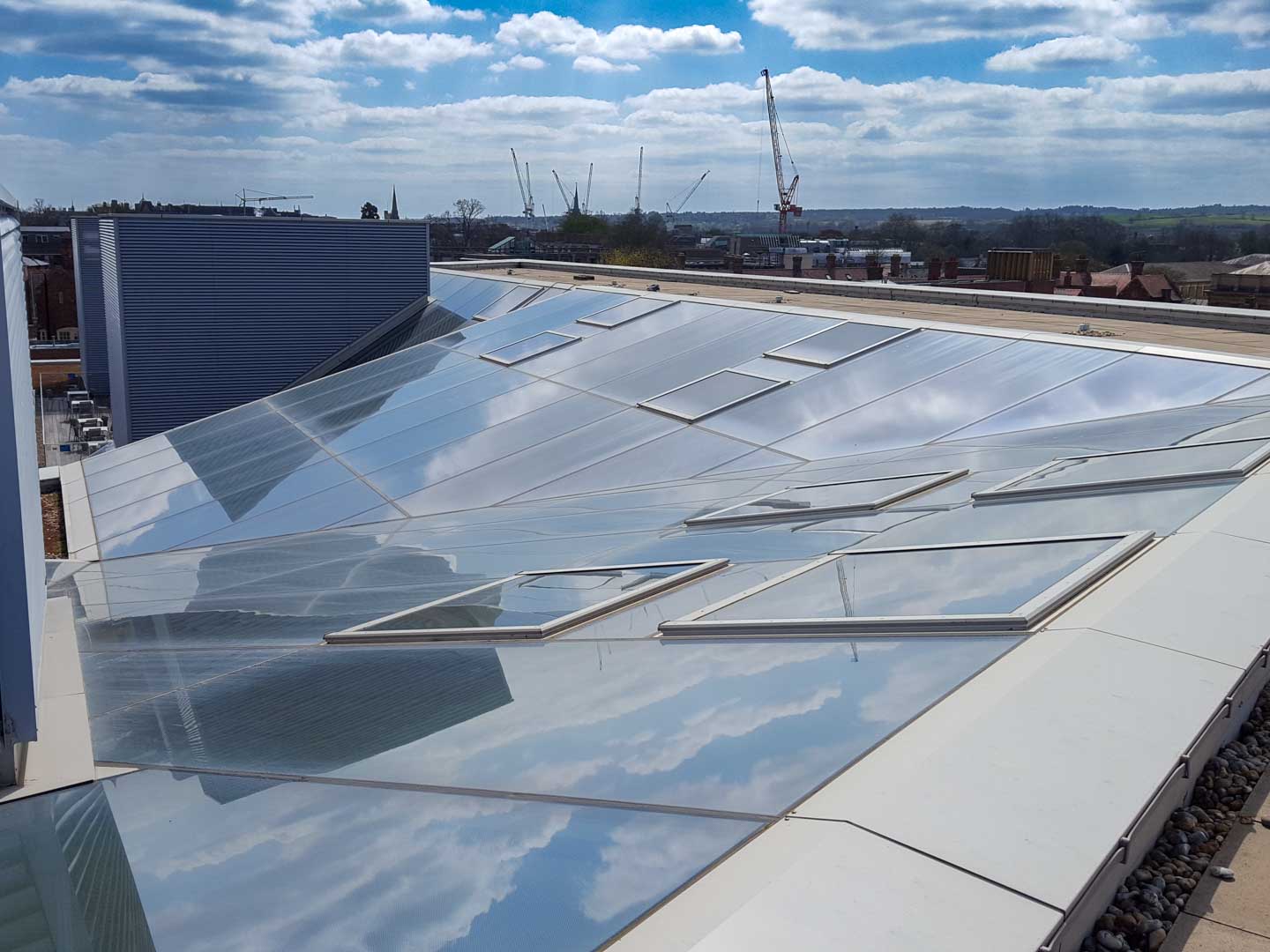

 Rooflight Installation:

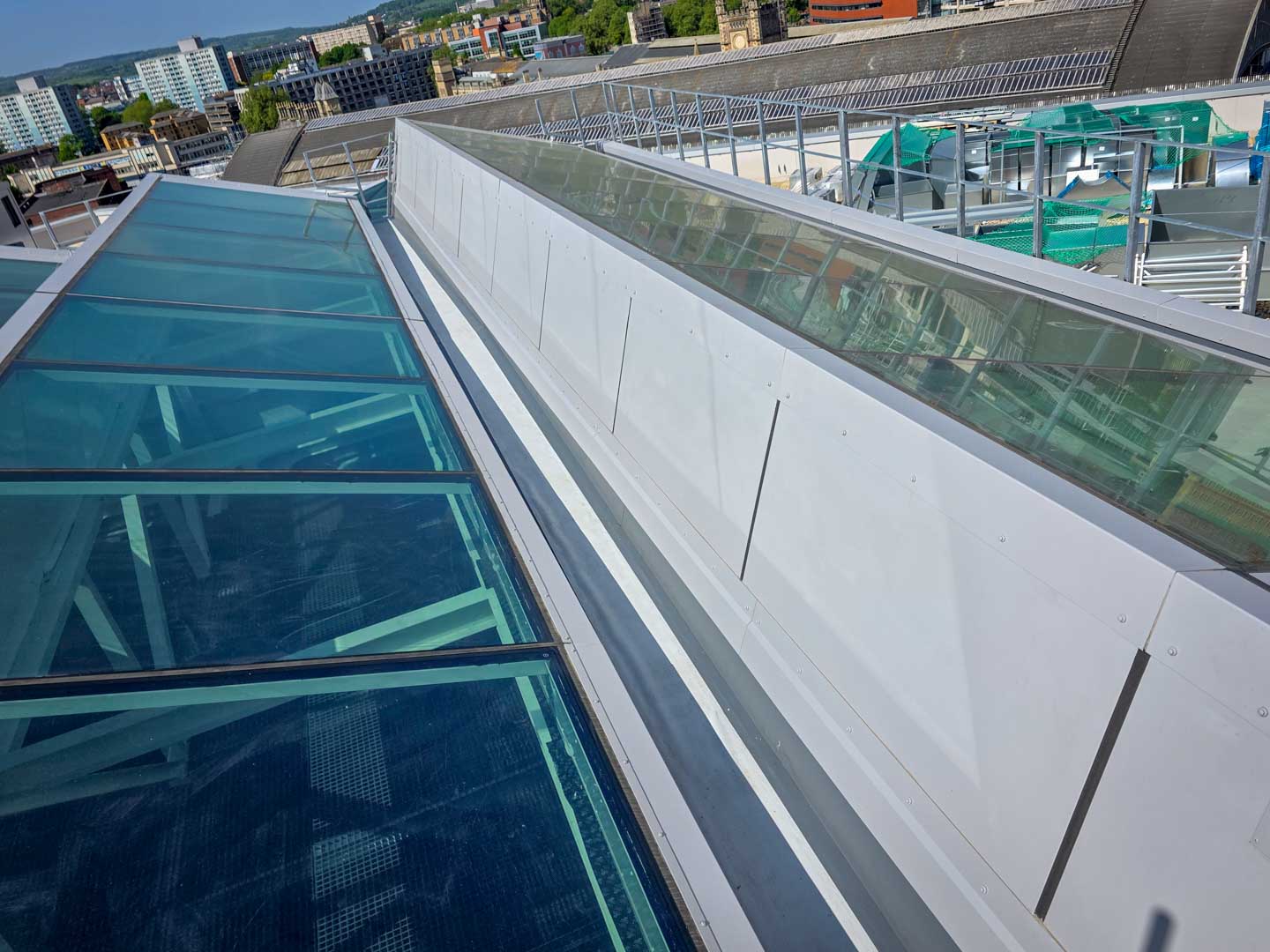

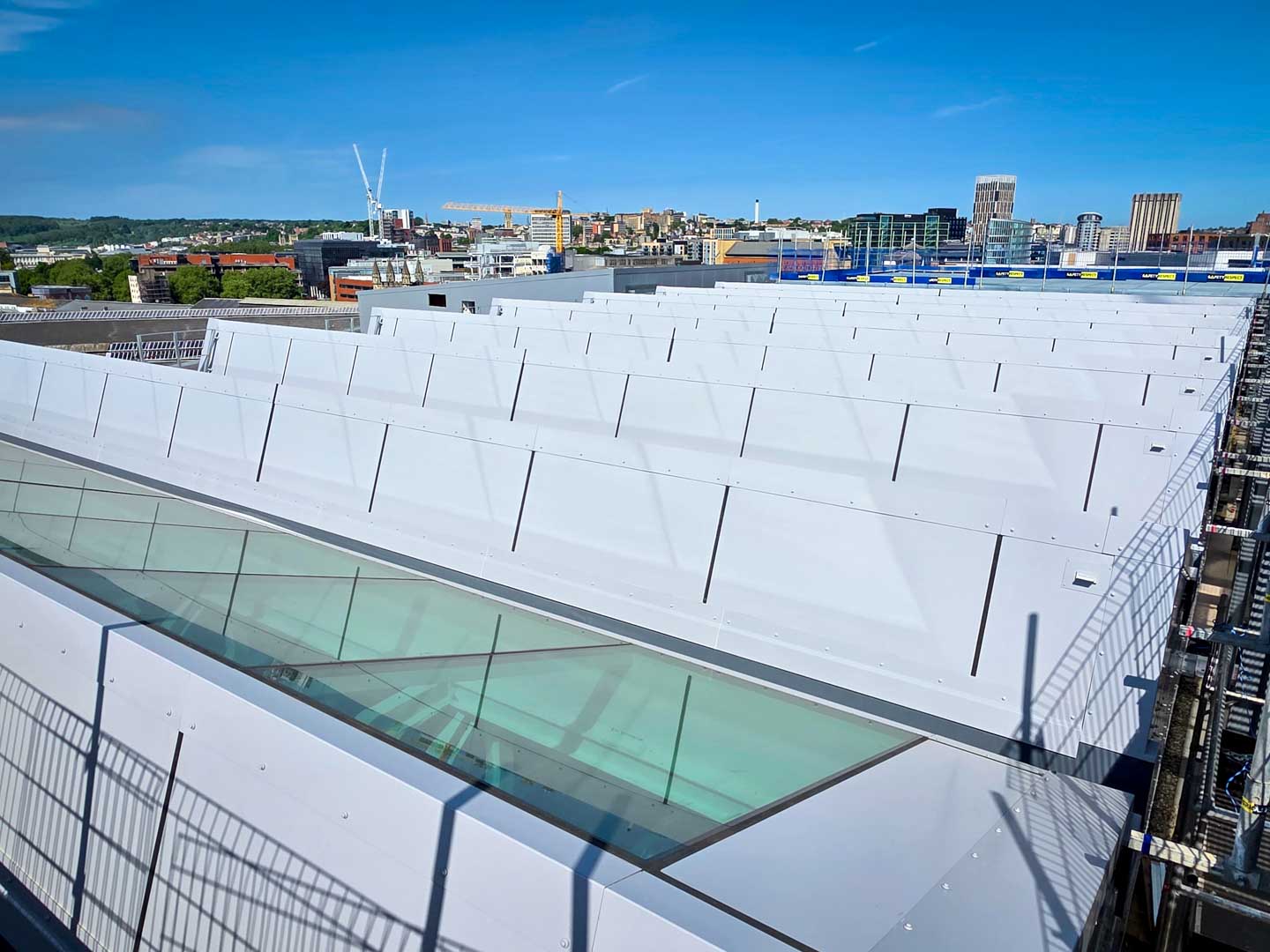

• Install the rooflight units with care to maintain the integrity of the waterproofing system.
• Ensure that flashing and sealing details are correctly incorporated to prevent water ingress.
• For operable rooflights, verify that the mechanism (manual or powered) is aligned and functions smoothly.
3. Alignment, Adjustments and Testing
• Carefully check that all panels and rooflights are plumb, level, correctly spaced and properly seated.
• Make minor adjustments to accommodate any misalignments or variations in fabrication tolerances.
• Conduct initial functionality tests on operable rooflights (if applicable) to ensure smooth opening, closing, and safety lock operations.

Post-Installation Phase

1. Sealing, Waterproofing, and Insulation
• Apply appropriate sealants and glazing tapes at all joints to achieve weatherproofing, air-tightness, and thermal performance.
• Perform water and wind tests on rooflight installations and perimeter seals to ensure complete waterproofing and to validate the resilience of the system under simulated weather conditions.
2. Cleaning, Detailing and Protection
• Remove all installation debris, fingerprints, vacuum suction pad marks and smudges from glass surfaces using non-abrasive cleaning agents designed for architectural glass.
• Inspect the edge details, joints, and trim elements to ensure a consistent, high-quality finish across the installed systems.
• Apply any necessary finishes or protective coatings.
3. Quality Assurance, Documentation and Handover
• Conduct a thorough final inspection comparing the installation against design and performance specifications, addressing any inconsistencies before project handover.
• Prepare comprehensive documentation, including as-built drawings, quality test reports, maintenance guidelines, and warranty information for both the glass and rooflight systems.
4. Client Training and Aftercare Support
• Provide training sessions for the client's maintenance team on safe cleaning practices, inspection routines, and troubleshooting for operable systems.
• Establish clear channels for aftercare support, including scheduled maintenance visits and prompt response plans for any issues related to the installed systems.

Project Management and Documentation

Throughout the installation process, our site teams maintain detailed documentation of all activities, including daily logs, inspection reports, and communication records. Our Site Managers will use adequate project management forms to track progress, and manage resources, to ensure timely completion of the project.

Our commitment

By following a comprehensive installation service plan, our organisation can ensure a high-quality, efficient, and safe installation of Architectural Glass and Rooflight systems that not only facilitates the efficient deployment of these advanced glazing systems but also ensures long-term durability and optimal performance in the built environment.
