Review for White Hart Lane Overground Station

Client: Levolux

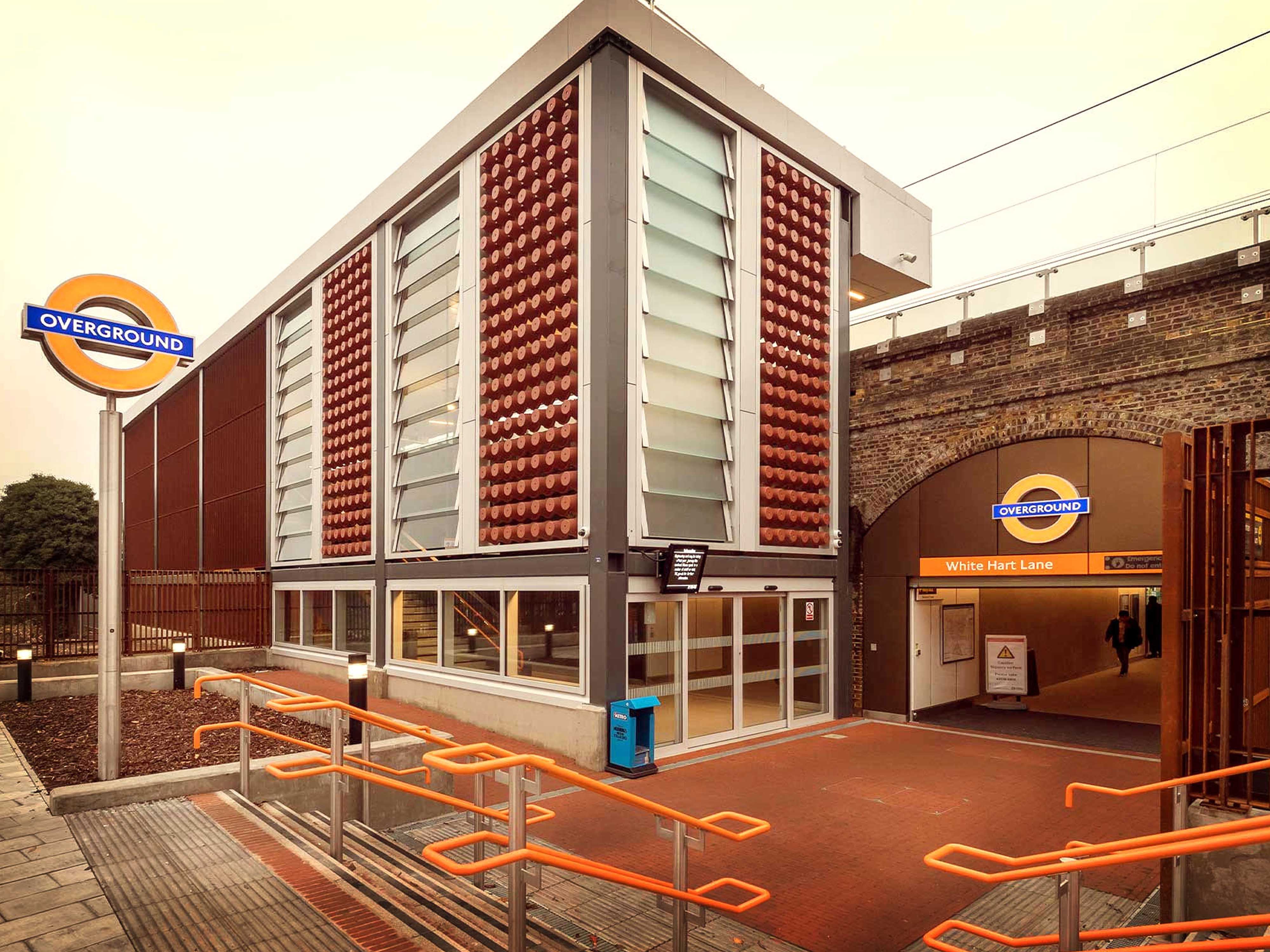

Project Name: Redevelopment of the White Hart Lane Overground Station
End Client: TFL Overground
Main Contractor: Taylor Woodrow

Our scope of work:

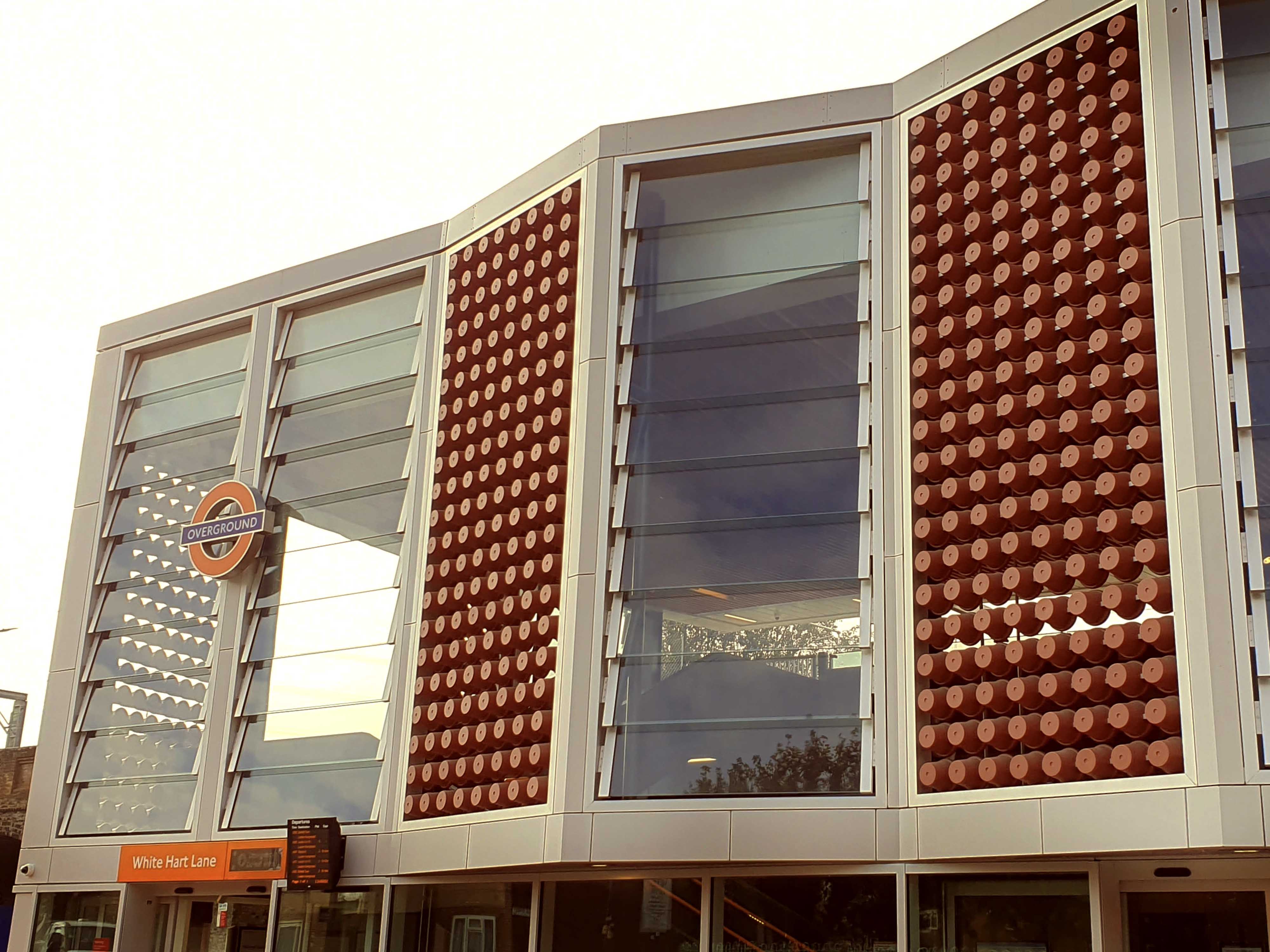

• Bespoke architectural cladding frame pots

• Horizontal architectural glass louvre frames

• Fascia PPC cladding panels

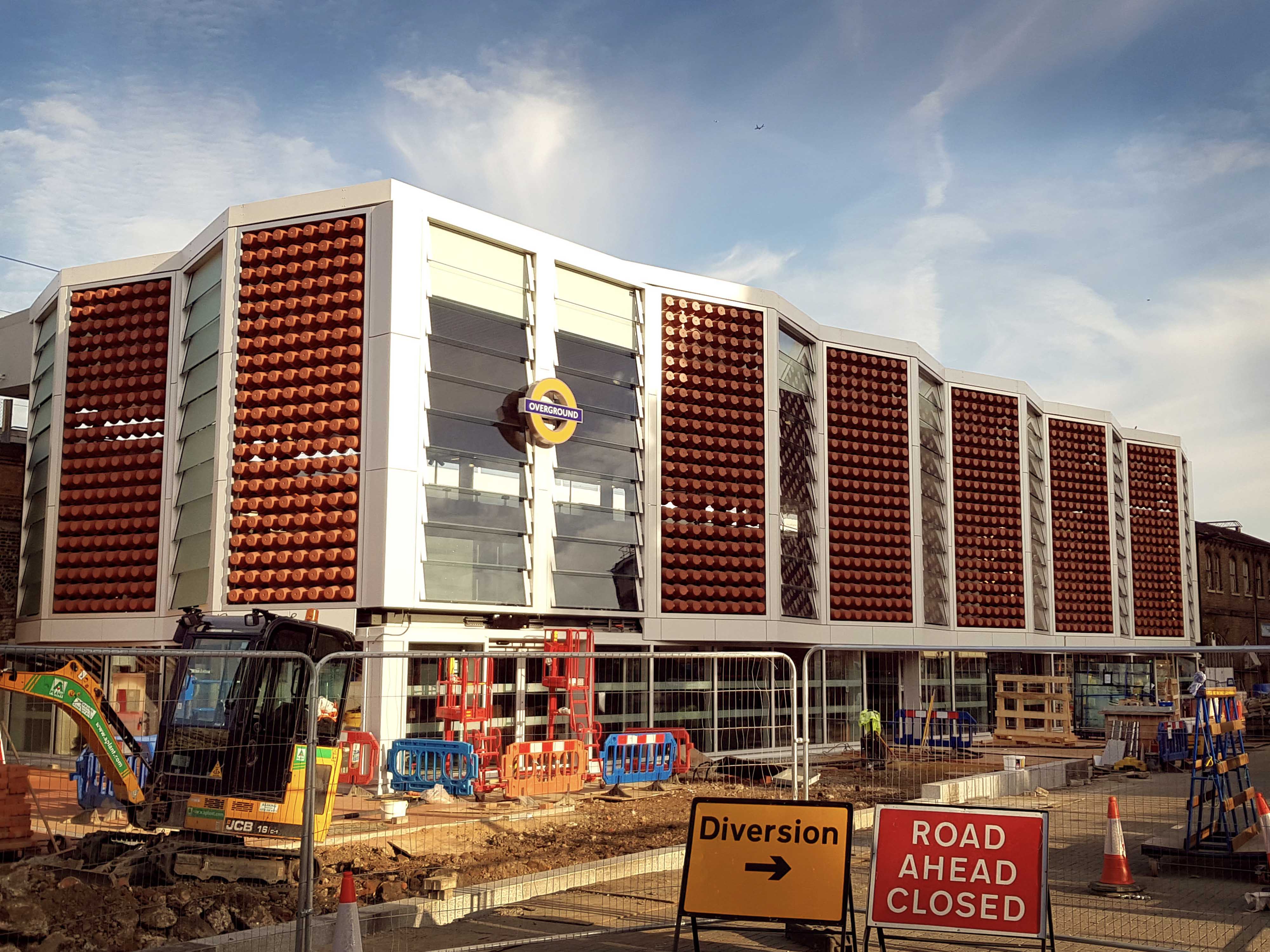

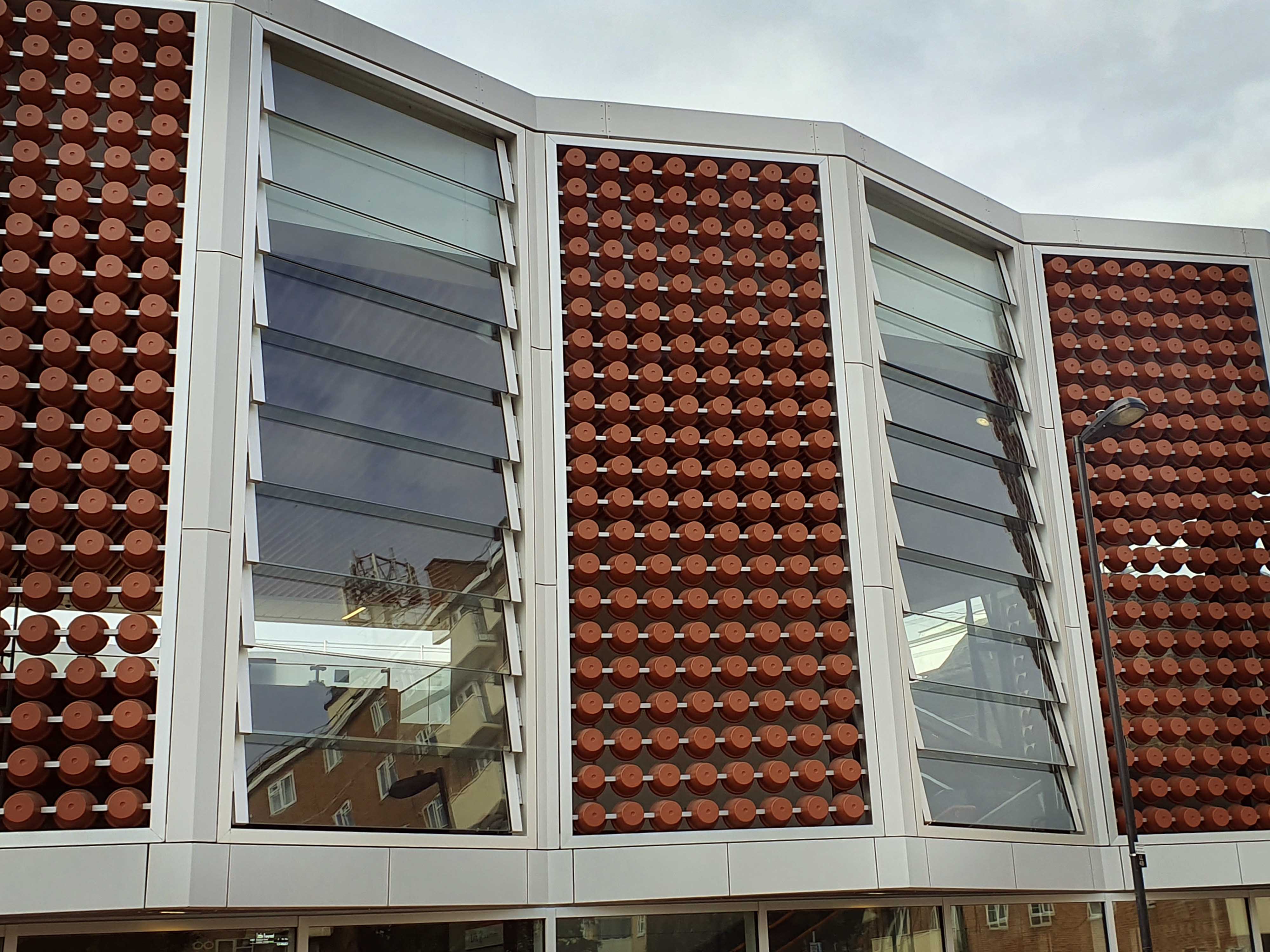

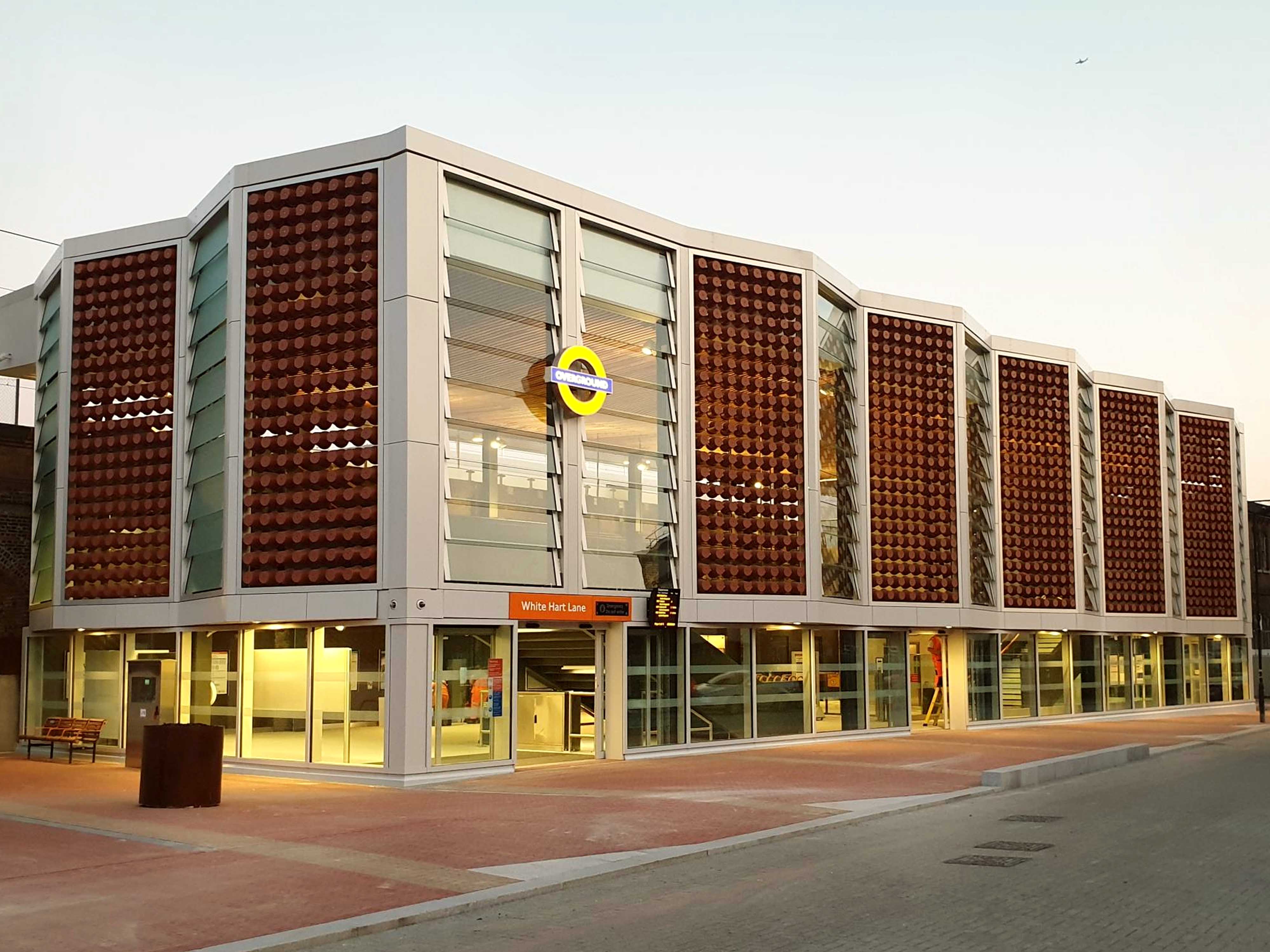

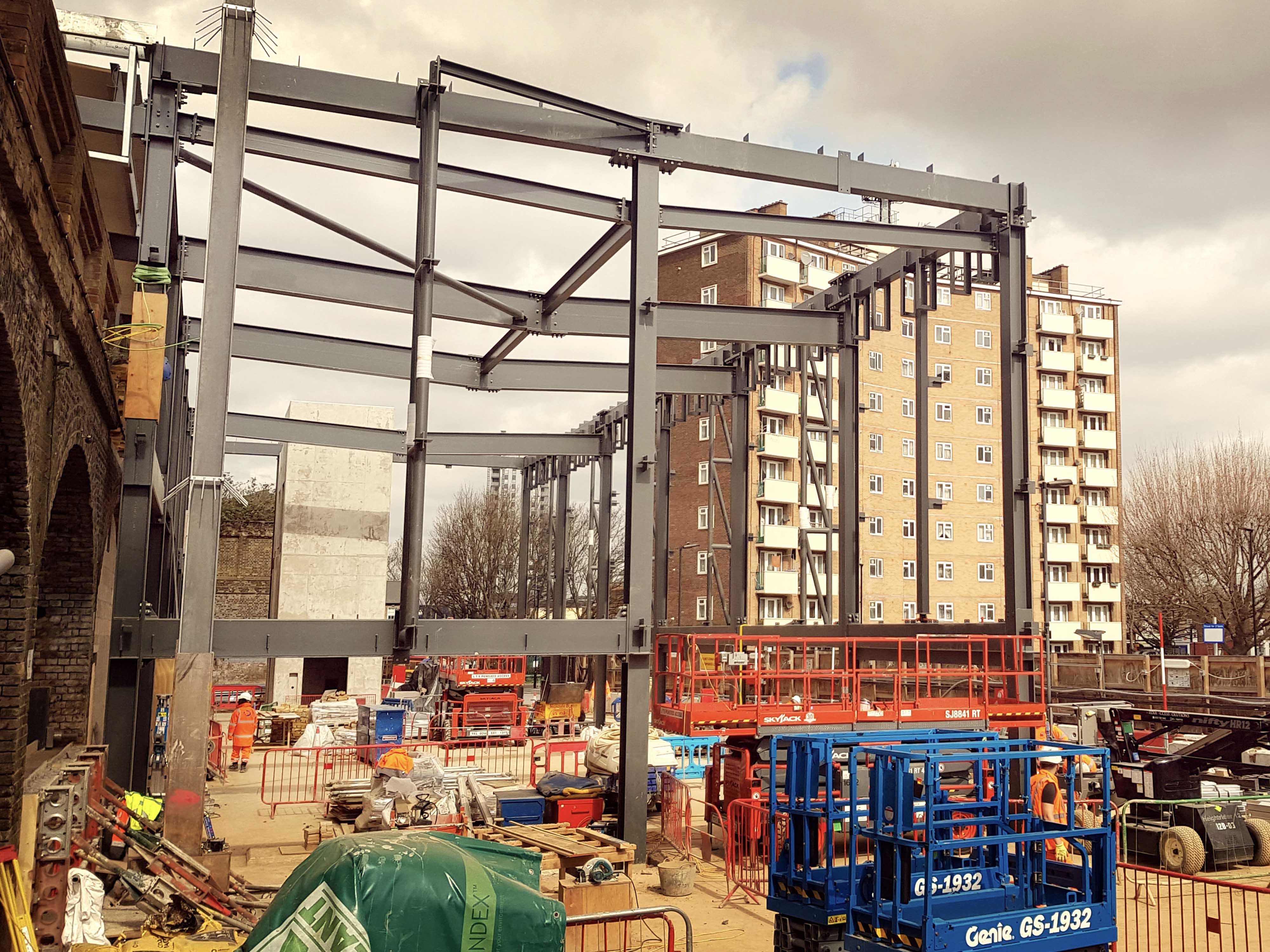

This installation consisted of a bespoke 2-piece extrusion framework fixed back to the primary steels. The construction methodology enabled all fixing back to the structure to be hidden. The decorative plant pots were made from cast aluminium, fixed to a horizontal rail, and subsequently fixed to the extruded framework.

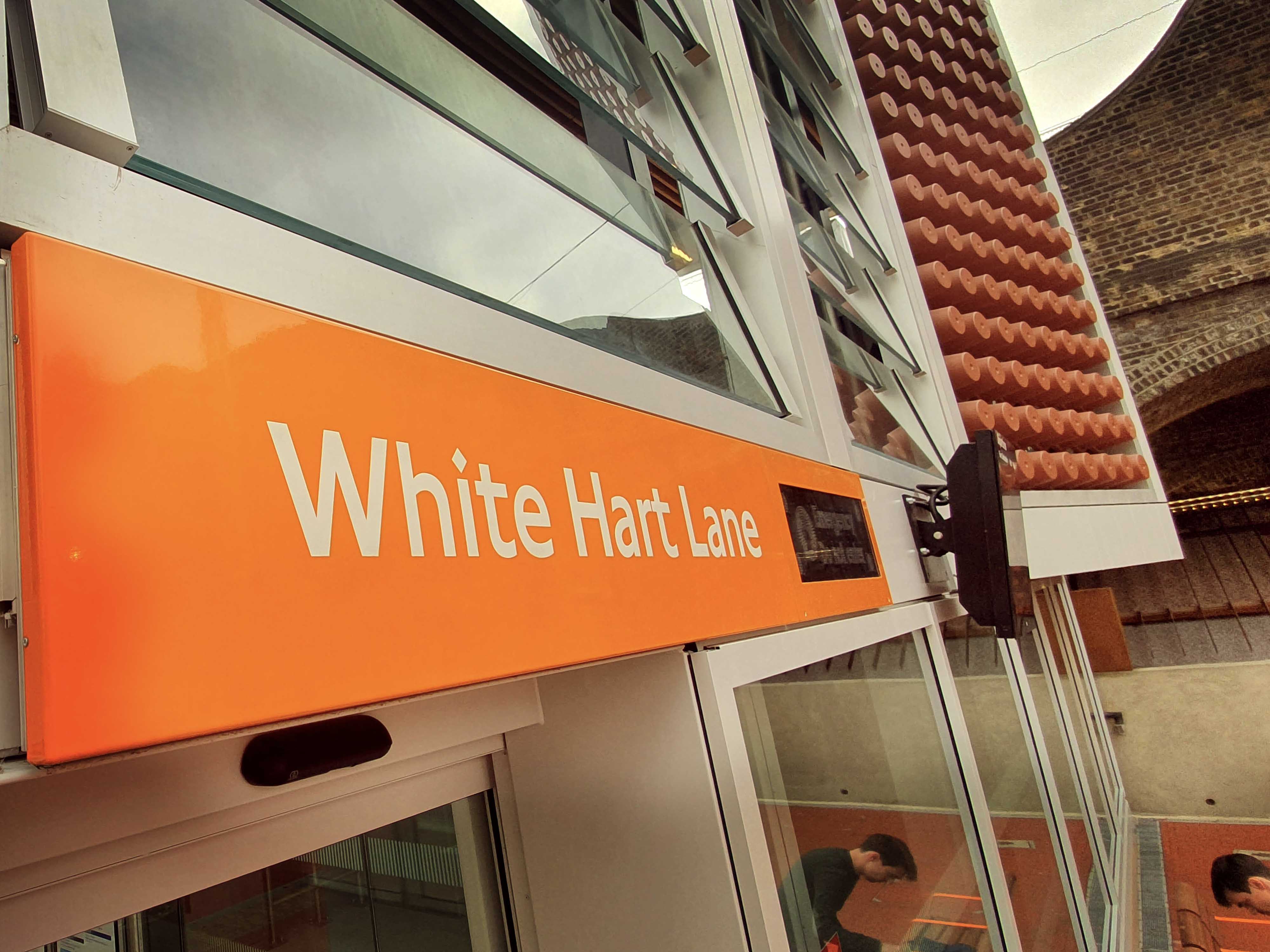

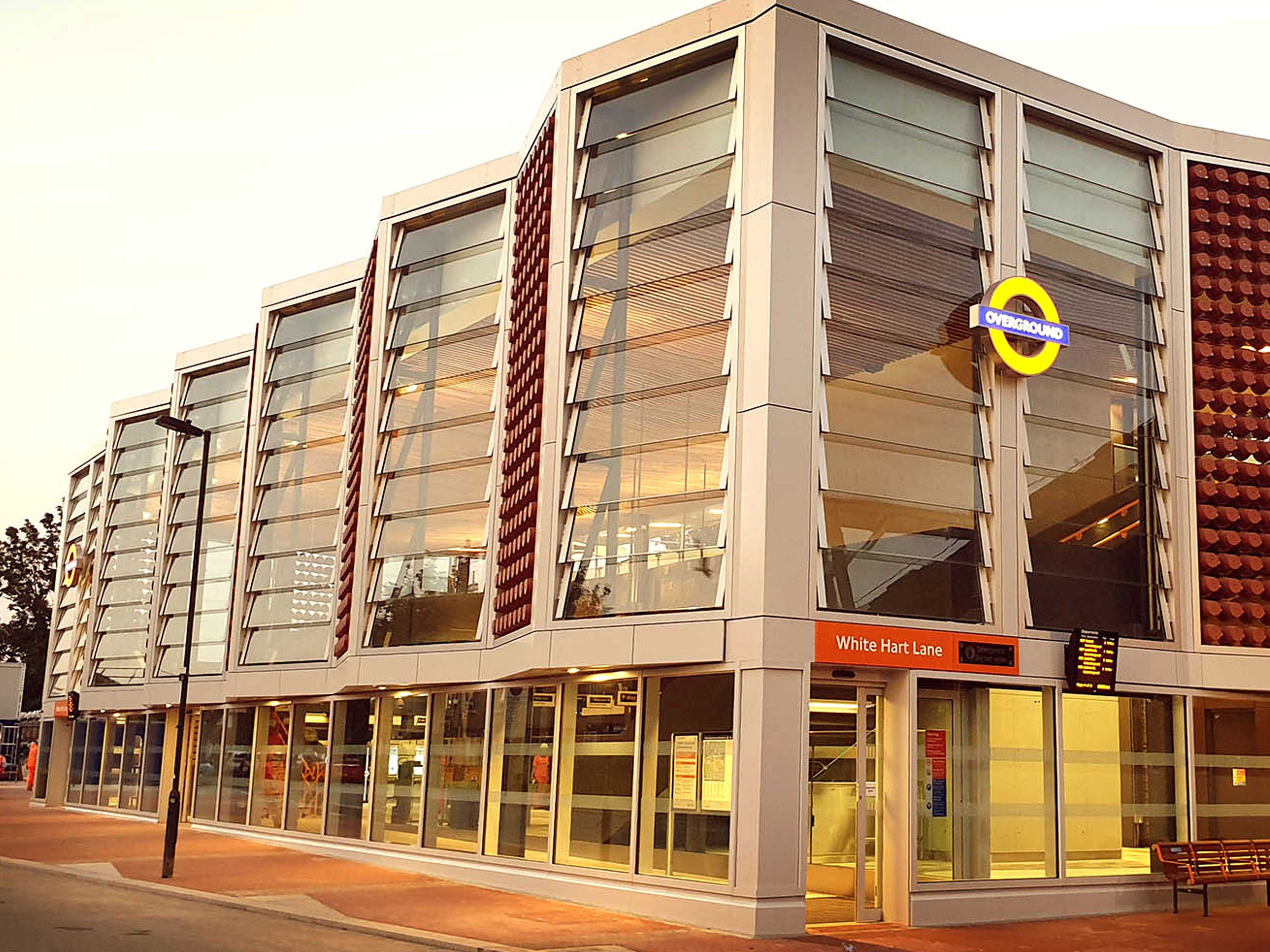

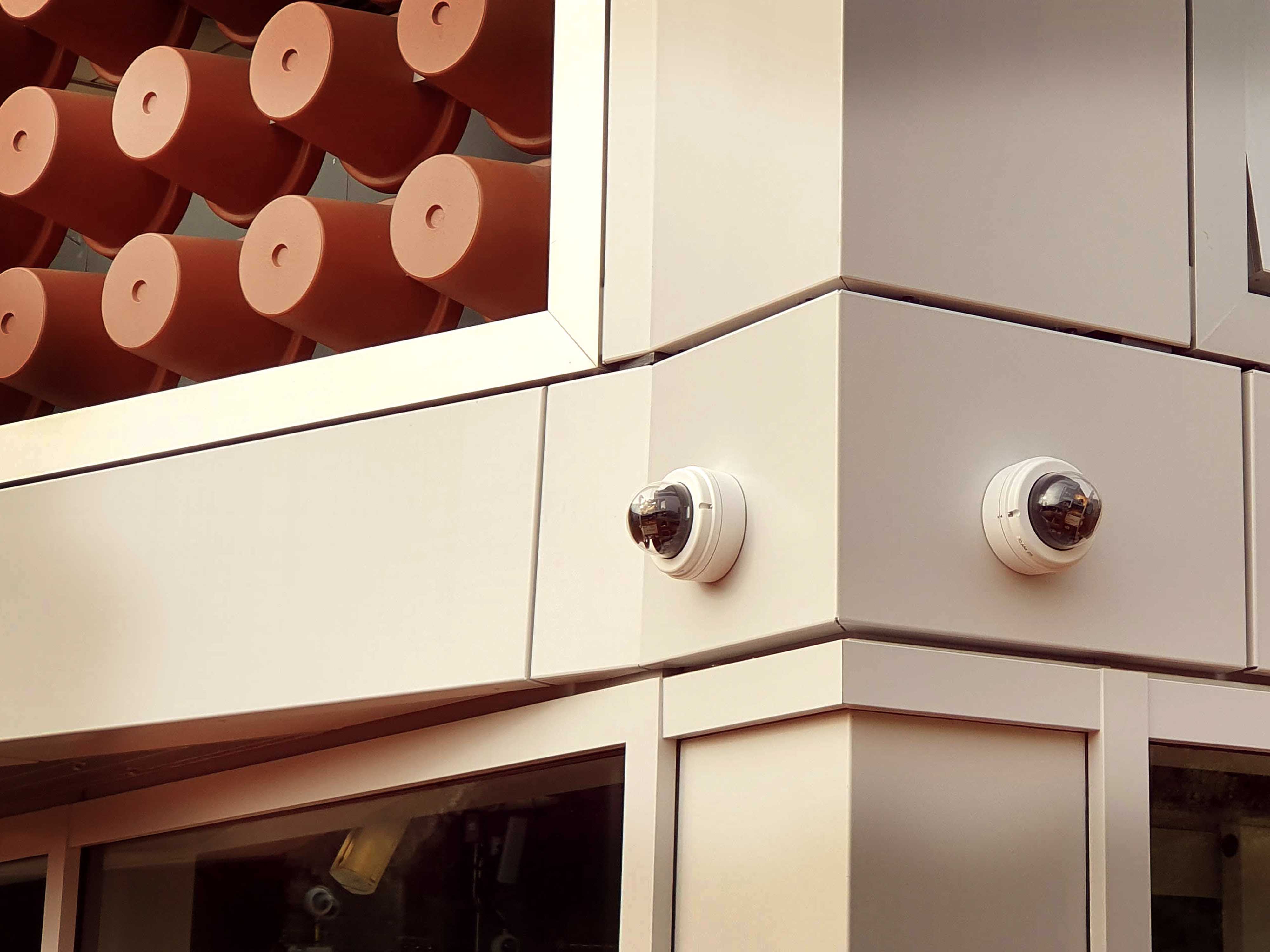

Where glass fins are present, these were structurally bonded to glass shoes which are fixed directly into the framework. The full construction was finished off with 3mm bespoke aluminium fascia panels with a helping hand brackets system subgrid to complete the look.

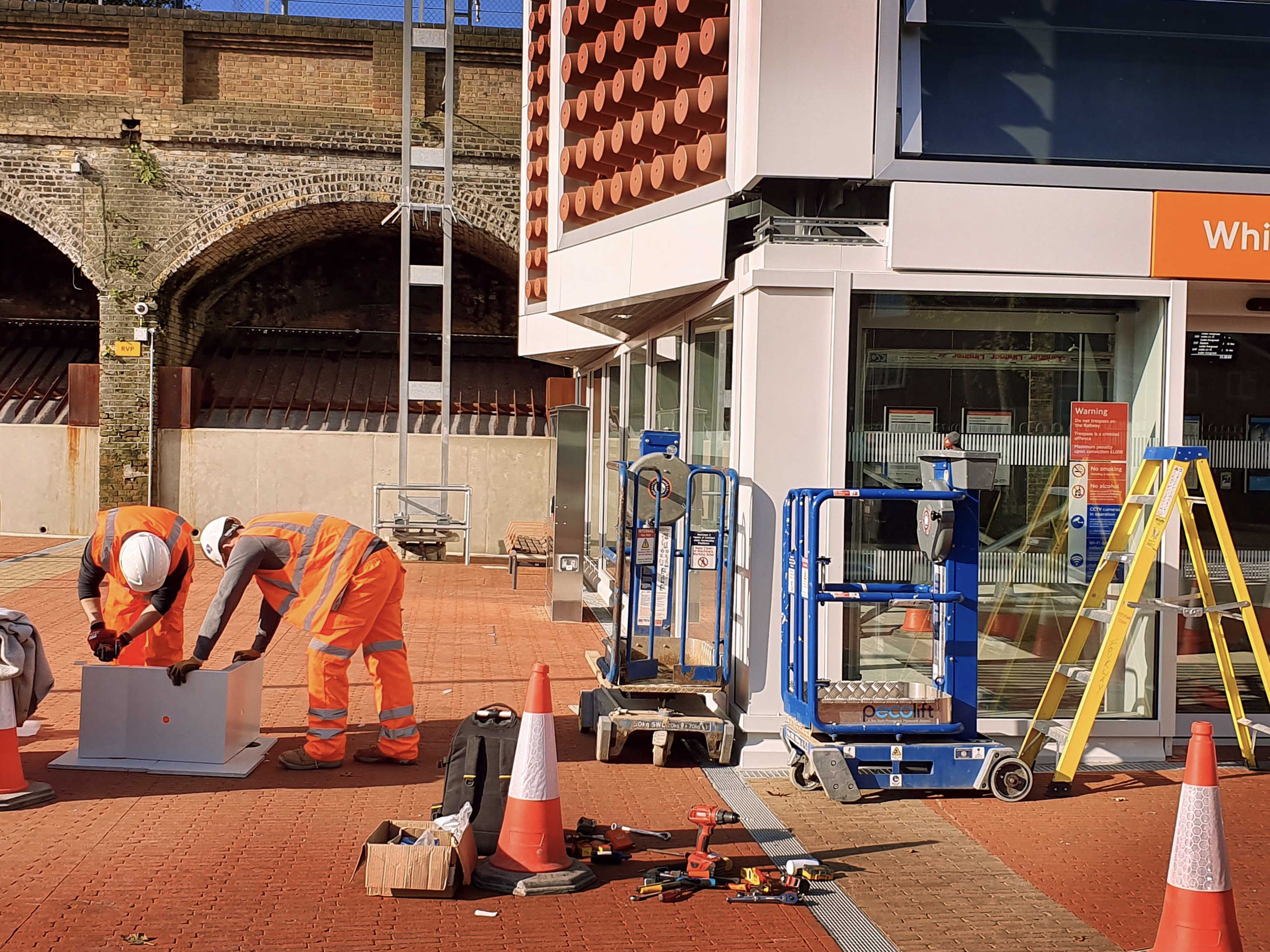

Well-planned lifting operations involved the use of mobile craneage with combined access from cherry pickers, scissor lifts and mobile towers while working alongside the live track.
